China's memory push reached the factory floor in September. According to Reuters, CXMT announced on September 20, 2026 that its fifth-generation DRAM platform had entered mass production, with the official statement published on the Cxmt site. The Eastern Engine video on denser memory frames its question from there: how do tighter cells shake the global market.
At the heart of the advance sits self-aligned quadruple patterning . According to TrendForce, the technique shrinks the array active-area half-pitch to 11.95 nanometers, putting the full active-area pitch near 23.9 nanometers. The company also says a DRAM-tuned high-k metal gate flow cuts core array height to 6,762 nanometers and new materials enable deep storage capacitors near a 45-to-1 aspect ratio.
The volume claim is the headline: at least fifty percent more gross dies per wafer . Getting half again as many dies from the same wafer lowers cost per bit and lifts power efficiency. On the host's reading, the density jump means more phone memory from fewer wafers, and that multiplier sets the direction of commodity-memory price competition.
How the density jump works
The first mass-produced parts target mobile: 24Gb LPDDR5X dies. According to TrendForce, the two chips shown at the 2026 World Manufacturing Convention in Hefei carry fifty percent more capacity per die than comparable prior parts. Offered in 496-ball and 245-ball packages for smartphones, both are already reported in mass production.
The desktop picture formed earlier. According to TechPowerUp, Gloway and KingBank started fitting CXMT-built 24Gb DDR5 dies into consumer kits, reaching 48 GB across two modules. Gloway's AMD-tuned 6,000 MT/s CL36 kit runs at 1.2 volts, while previously confirmed 16Gb dies hit 8,000 MT/s at 67 square millimeters and 0.239 Gb per square millimeter. The scaling path reads through shrinking cell area. G4 cells ran about twenty percent smaller than G3, and after the journey from 23-nanometer toward 18-nanometer class processes, G5 extends the curve with quadruple patterning. The presenter frames deeper capacitors and more layers squeezing extra bits from the same silicon as a new round of memory economies of scale.
Why now and what it means
Financing magnifies the story. According to Apnews, CXMT listed in Shanghai in July after an $8.6 billion offering, with shares surging more than 500 percent on debut. Market value near $539 billion made it China's most valuable listed company, and the capital shower is widely read as fuel for new fab spending.
On the market side, domestic substitution is accelerating. According to Counterpointresearch data, the company is knocking on the big-three club of Samsung, SK Hynix and Micron, while Chinese module makers ramp output. Brands such as Gloway turning from imported supply toward homegrown dies makes Beijing's self-sufficiency goal concrete in the supply chain.
The geopolitical layer hides in lithography choices. With restricted access to extreme-ultraviolet tools, the Chinese maker advances on installed deep-ultraviolet gear with multi-step patterning. Patent filings linked to Huawei and SMIC around similar techniques were discussed in 2024. That route demands more steps and tighter deposition and etch control; small deviations can accumulate into pitch walk, which is why moving it into volume matters.
Limits and a careful read
A careful read narrows the numbers. According to Tomshardware analysis, the 11.95-nanometer figure is an active-area half-pitch, not a conventional process node, so direct node mapping misleads. And while a 45-to-1 capacitor ratio impresses, SK Hynix guidance that ratios beyond 100-to-1 will be needed below 10-nanometer critical dimensions shows how much road remains.
The biggest unknown is yield. The company disclosed gross-die gains without sharing yield rates or known-good-die counts. Without yield, true cost per bit cannot be computed, and density alone cannot establish parity without power, transistor behavior and defect data. The narrator keeps this boundary clear: a large achievement, but parity talk comes early.
The net picture is intensifying cost-and-power competition in commodity memory. Homegrown 24Gb dies spreading through Chinese phones, cheaper 48 GB desktop kits and bit-cost pressure toward servers belong to the same chain. For buyers that points to cooler, cheaper memory; for producers it points to a fresh round of price warfare.
| Signal | Detail |
|---|---|
| G5 in volume | 24Gb dies, 50% more bits per die |
| Tech lever | Quadruple patterning, 11.95 nm half-pitch |
| Watch yield | No yield data, cost per bit unknown |
Key moments
AI commentary
"What matters here is that the density gain moved from lab slides to the fab floor. Fitting fifty percent more bits into the same die pressures both price and power in phones and PCs at once."
AI assessment
The strongest part of the claim is also the part that needs the most careful reading. Volume production of a quadruple-patterned flow is genuinely hard, because pitch walk and etch variation compound across steps, so moving SAQP from development into a fab running 24Gb dies is a real manufacturing signal. To steelman the bullish case, the financing and adoption data help: Apnews documents the blockbuster listing that funds expansion, TechPowerUp documents domestic kits already shipping, and Counterpointresearch places the company near the big-three club.
What is missing sits in three gaps. First, yields and known-good-die counts are undisclosed, so the fifty-percent gross-die gain cannot be converted into cost per bit. Second, the 11.95-nanometer figure is an active-area half-pitch rather than a node, and Tomshardware rightly warns against direct parity claims without power, transistor and defect data. Third, the host channel gains from a breakthrough narrative, and TrendForce plus Reuters relay company statements that independent teardowns have not yet fully verified.
The practical read splits by audience. Phone and PC buyers can reasonably expect cheaper high-capacity memory, from 24Gb mobile dies to 48 GB desktop kits, if yields hold. Investors should watch capacity additions and pricing rather than the half-pitch number alone, because commodity DRAM punishes overbuilding fast. For policy watchers, the lesson is that installed deep-ultraviolet gear plus clever multi-patterning keeps narrowing the gap even under export controls.
Sources
10 links; 2 of them also cited by 2 other stories. Stories sharing a link do not confirm each other; a source's origin is not inferred from how often it is cited.
- @youtube.com YouTube — Eastern Engine
- @reuters.com Reuters G5 mass production
Also cited by: Four Chip Giants Face the Same Week's Test: The Most Crowded Trade Fear in Micron, AMD, Nvidia and SanDisk · Continual Learning Gives the Memory Supercycle a Name: Citi Sees -8.7% Gap in 2027
- @trendforce.com TrendForce G5 SAQP detail
- @tomshardware.com Tomshardware 12nm-class caveats
- @techpowerup.com TechPowerUp 24Gb DDR5 kits
- @apnews.com Apnews CXMT listing
- @cxmt.com CXMT official G5 announcement
Also cited by: Continual Learning Gives the Memory Supercycle a Name: Citi Sees -8.7% Gap in 2027
- @counterpointresearch.com Counterpointresearch big-three club
- @commons.wikimedia.org Hero photo: silicon wafer (Wikimedia Commons)

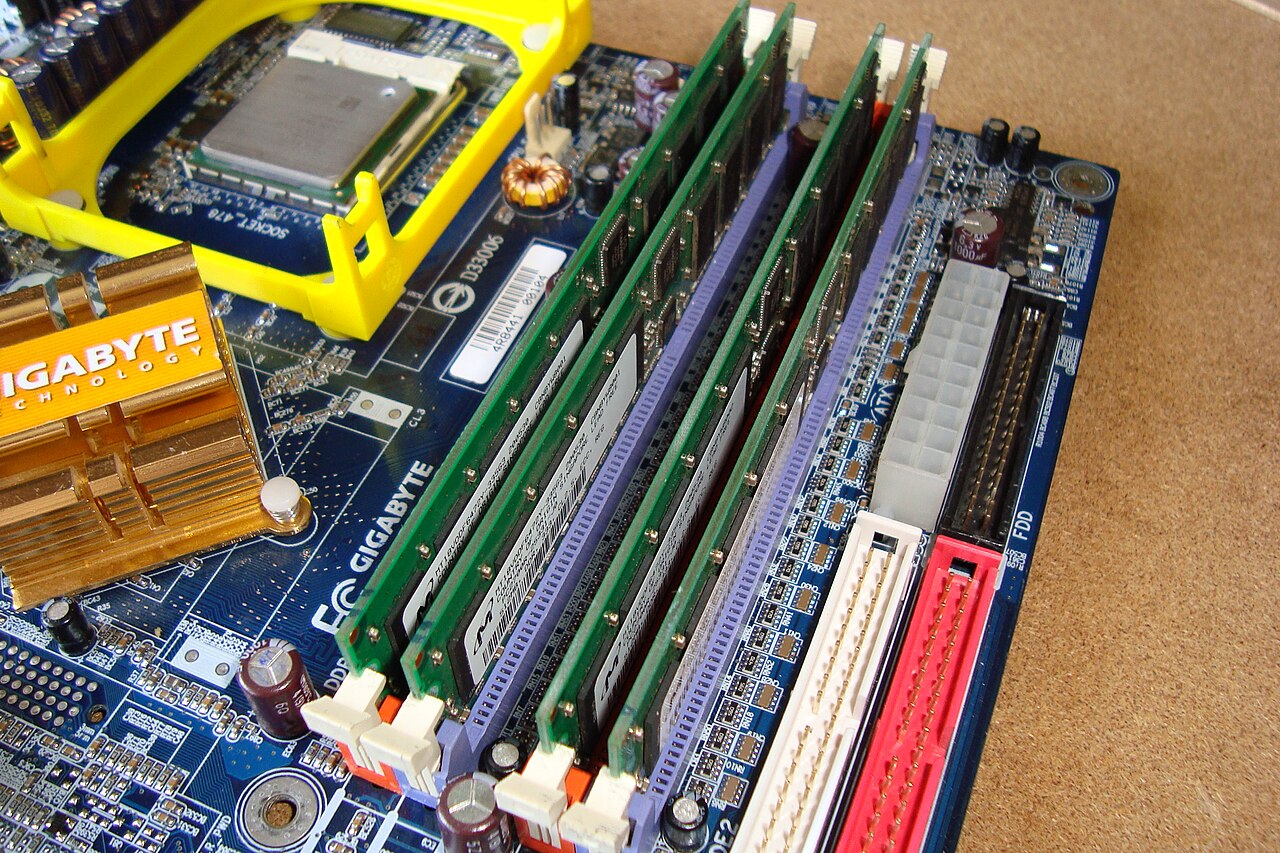

- @commons.wikimedia.org Inline photo: DDR memory modules (Wikimedia Commons)
